SF10

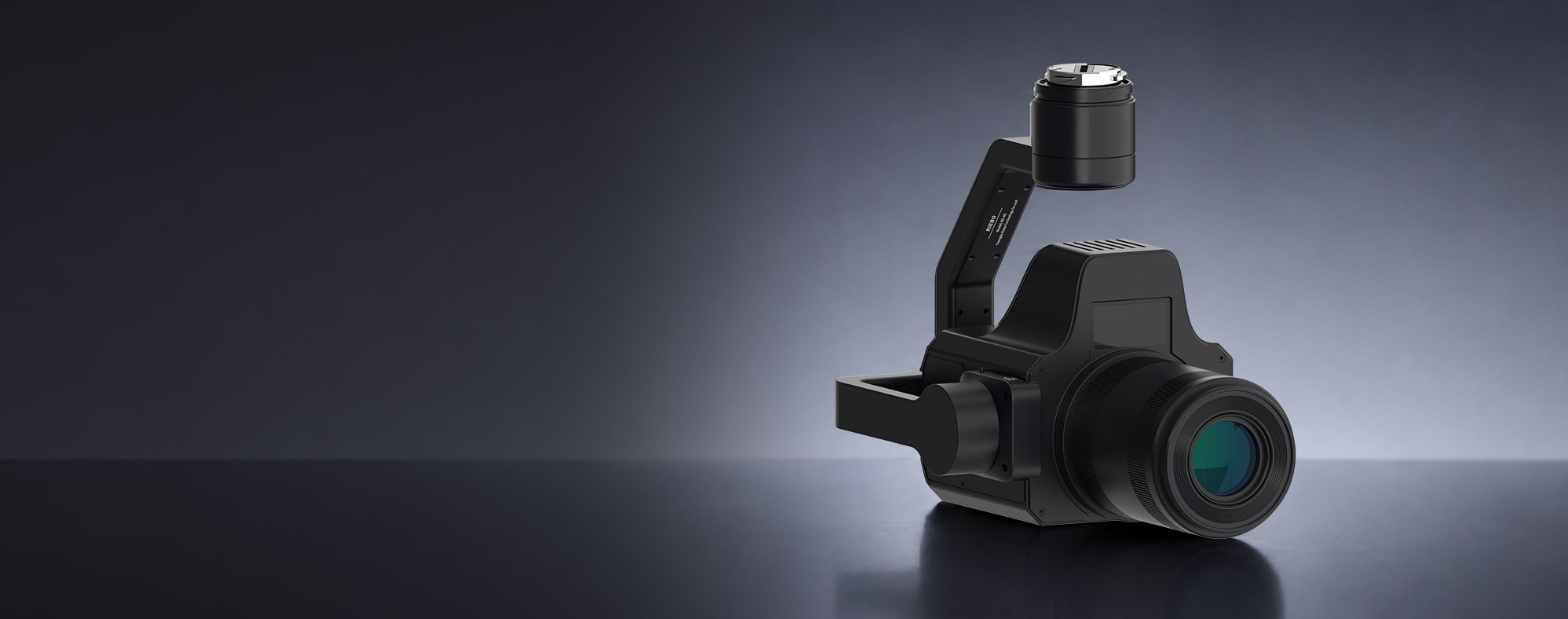

Medium-format super telephoto inspection camera

TECHNICAL SPECIFICATIONS

Basic Parameters

  • Total Pixels

    103MP

  • Resolution

    11276（H）*9200（V）

  • Sensor Sizes

    36.1 mm x 29.4 mm

  • Focal Length

    75mm/120mm

  • Camera Weight

    ≤720g

  • Shutter Speed

    1/16000

  • Sensor Type

    CMOS Global Shutter

  • Digital Zoom

    1x 4x 8x 16x 32x 64x

  • Camera Memory

    256GB

  • Parameter Adjustment Method

    DJI Remote Controller/Bluetooth/Serial port

Performance Parameters

  • Power Supply Interface

    X-Port

  • Overall System Power

    35W

  • Image Resolution

    Superior to 0.1mm

  • Focus Mode

    Phase Detection AF

Functional Parameters

  • Trigger Mode

    Timed Interval Shot/Distance Interval Shot

  • Real-time Image Transmission

    Support

  • Real Time Video

    Support

  • Data Transfer Mode

    SD Card

  • Working Temperature

    -20℃-65℃

  • Working Humidity

    ≤95% RH

Complementary Features

  • Data Processing Software

    Skyscanner (Advanced edition)

  • Route Planning Software

    Riebo Route Assistant
