DG3M

Riebo Innovator Oblique Camera

  • Image Coding
  • No GCPs Required
  • MLS Shutter
  • Detachable Gimbal
  • Redundant Data Deletion

Mapping Camera
TechHub

Explore the forefront of Photogrammetry innovation Mapping Camera TechHub, where cutting-edge mapping cameras redefine precision and efficiency in the ever-evolving field of spatial imaging technology.

Learn More
mapping camera techhub

TECHNICAL SPECIFICATIONS

Basic Parameters
  • Total Pixels

    150MP

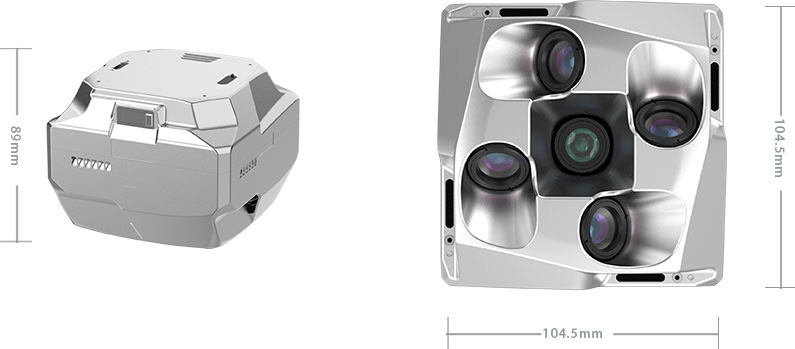

  • Dimension

    104.5*104.5*89mm

  • Camera Weight

    ≤640g

  • Gimbal Version Weight

    ≤1030g

  • Gimbal Version Size

    163*156*177mm

  • Exposure Time Interval

    0.5s

  • Shutter Speed

    1/100~1/2000s

  • Camera Memory

    640GB*2

  • Data Transfer Mode

    Fast storage download

  • Synchronization

    1ms

  • Exposure Feedback Accuracy

    50μs

  • Synchrony Monitoring

    Active

  • Parameter Adjustment Method

    Serial port

Adaptive Parameters
  • Supply Voltage

    DC (12V-27V)

  • Power Supply Interface

    Skyport/DC/Custom

  • Mounting Mode

    Downward Hanging/Upward Lifting

  • Shock Absorption

    Damping Ball

  • Operating Temperature

    -20℃-65℃

  • Trigger Mode

    Skyport/Low Level/Serial Port/Bluetooth

Optical Parameters
  • Focal Length

    30mm/45mm

  • Number Of Lens

    5

  • Lens Tilt Angle

    45°

  • Lens Layout

    Surround

  • Lens Structure

    5 elements in 4 groups

  • The Minimum Focusing Distance

    10m

  • FOV (Horizontal)

    42.78°/29.27°

  • FOV (Vertical)

    29.15°/19.67°
