R4/R6

Riebo Premier Mapping Camera

  • Image Coding
  • No GCPs Required
  • MLS Shutter
  • MLE Lens
  • Open SDK

Mapping Camera
TechHub

Explore the forefront of Photogrammetry innovation Mapping Camera TechHub, where cutting-edge mapping cameras redefine precision and efficiency in the ever-evolving field of spatial imaging technology.

Learn More
mapping camera techhub

TECHNICAL SPECIFICATIONS

Basic Parameters
  • Total Pixels

    61MP/45MP

  • Dimension

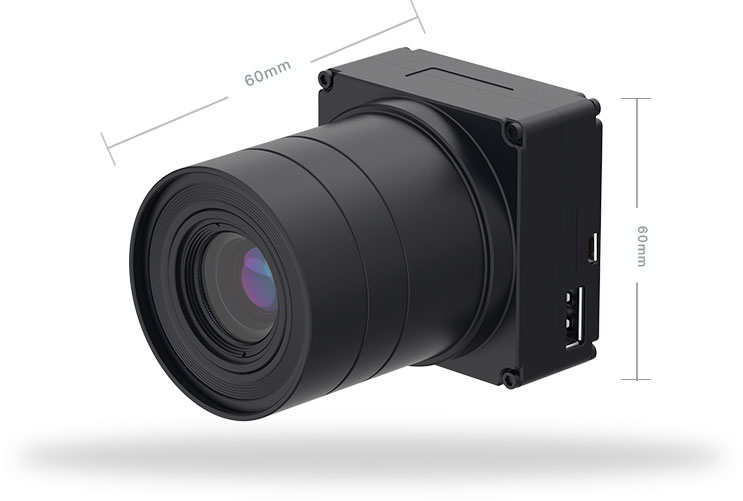

    60*60*84mm

  • Camera Weight

    205g

  • Exposure Time Interval

    1s

  • Shutter Speed

    1/100~1/2000s

  • Camera Memory

    256GB*2

  • Data Transfer Mode

    TF Card/USB

  • Exposure Feedback Accuracy

    50μs

  • Parameter Adjustment Method

    USB/Serial port

Adaptive Parameters
  • Supply Voltage

    DC (12V-27V)

  • Power Supply Interface

    Custom

  • Mounting Mode

    Downward Hanging/Upward Lifting

  • Shock Absorption

    Damping Ball

  • Operating Temperature

    -20℃-65℃

  • Trigger Mode

    Low Level/USB/Serial Port

Optical Parameters
  • Focal Length

    18/40mm

  • Number Of Lens

    1

  • Lens Structure

    6 elements in 4 groups/6 elements in 4 groups

  • The Minimum Focusing Distance

    4m/10m

  • FOV (Horizontal)

    89.84°

  • FOV (Vertical)

    67.16°
