D2M

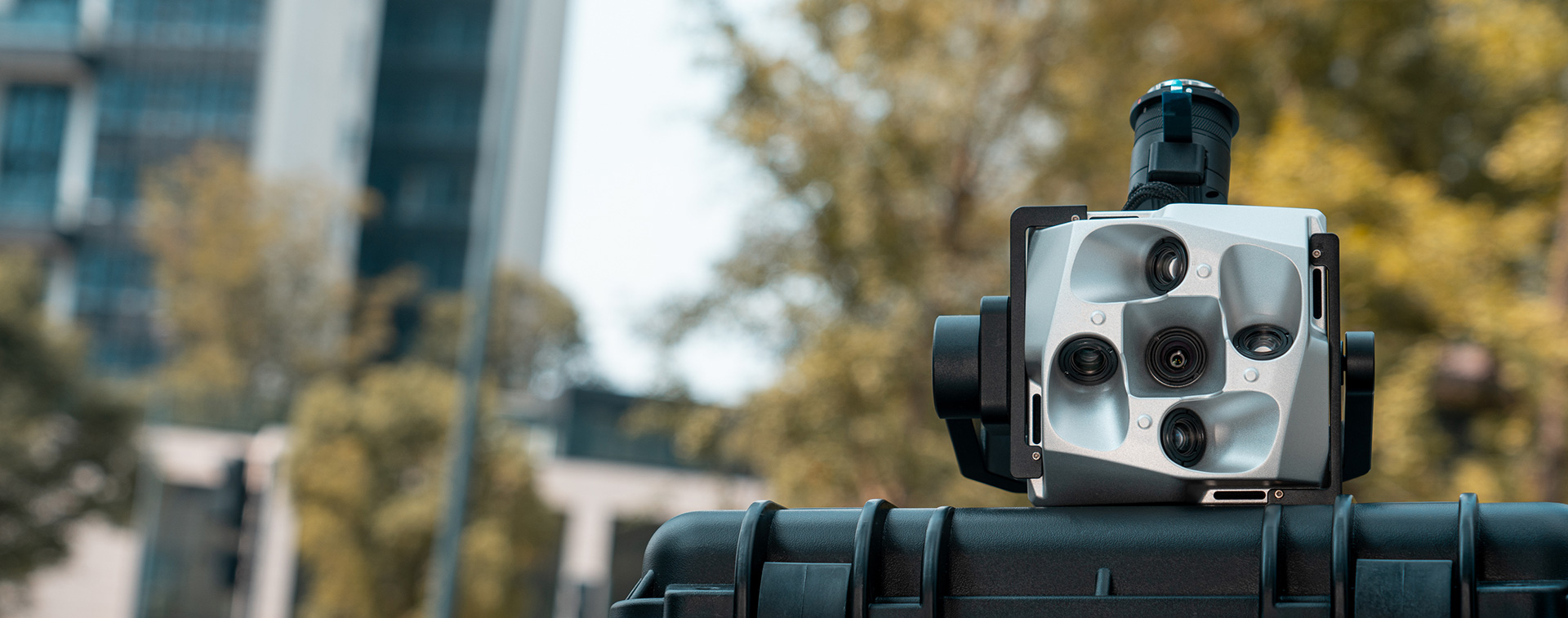

Riebo Innovator Oblique Camera

  • Image Coding
  • No GCPs Required
  • MLS Shutter
  • Detachable Gimbal
  • Redundant Data Deletion

TECHNICAL SPECIFICATIONS

Basic Parameters

  • Total Pixels

    130MP

  • Dimension

    104.5*104.5*87mm

  • Camera Weight

    ≤630g

  • Gimbal Version Weight

    ≤1020g

  • Gimbal Version Size

    163*156*177mm

  • Exposure Time Interval

    0.5s

  • Shutter Speed

    1/100~1/2000s

  • Camera Memory

    640GB*2

  • Data Transfer Mode

    Fast storage download

  • Synchronization

    1ms

  • Exposure Feedback Accuracy

    50μs

  • Synchrony Monitoring

    Passive

  • Parameter Adjustment Method

    Remote control/Serial port/Bluetooth

Adaptive Parameters

  • Supply Voltage

    DC (12V-27V)

  • Power Supply Interface

    Skyport/DC/Custom

  • Mounting Mode

    Downward Hanging/Upward Lifting

  • Shock Absorption

    Damping Ball

  • Operating Temperature

    -20℃-65℃

  • Trigger Mode

    Skyport/Low Level/Serial Port/Bluetooth

Optical Parameters

  • Focal Length

    25mm/35mm

  • Number Of Lens

    5

  • Lens Tilt Angle

    45°

  • Lens Layout

    Surround

  • Lens Structure

    5 elements in 3 groups/5 elements in 4 groups

  • The Minimum Focusing Distance

    8m

  • FOV (Horizontal)

    50.35°/37.12°

  • FOV (Vertical)

    34.66°/25.13°
