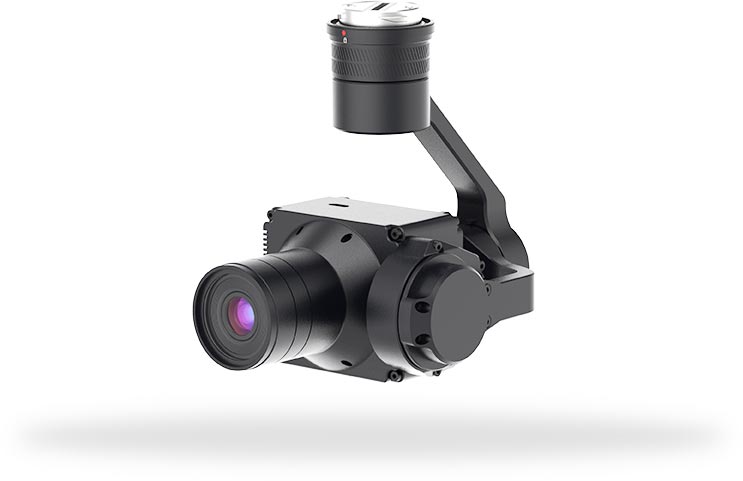

R4M/R6M

Full-frame Mapping Camera

  • Image Coding
  • No GCPs Required
  • MLS Shutter
  • MLE Lens
  • Open SDK

Mapping Camera
TechHub

Explore the forefront of Photogrammetry innovation Mapping Camera TechHub, where cutting-edge mapping cameras redefine precision and efficiency in the ever-evolving field of spatial imaging technology.

Learn More
mapping camera techhub

TECHNICAL SPECIFICATIONS

Basic Parameters
  • Total Pixels

    45MP/61MP

  • Dimension

    68*60*94mm

  • Camera Weight

    225g/225g

  • Exposure Time Interval

    0.85S/1s

  • Shutter Speed

    1/100-1/2000s

  • Camera Memory

    256GB*2

  • Data Transfer Mode

    TF Card

  • Parameter Adjustment Method

    Remote control/Bluetooth/serial port

Adaptive Parameters
  • Supply Voltage

    DC (12V-27V)

  • Power Supply Interface

    Custom

  • Mounting Mode

    Downward Hanging/Upward Lifting

  • Shock Absorption

    Damping Ball

  • Operating Temperature

    -20℃-65℃

  • Trigger Mode

    Skyport/Low Level/Bluetooth/Serial Port

Optical Parameters
  • Focal Length

    40mm

  • Number Of Lens

    1

  • Lens Structure

    6 elements in 4 groups/6 elements in 4 groups

  • The Minimum Focusing Distance

    10m

  • FOV (Horizontal)

    48.46°

  • FOV (Vertical)

    33.40°
