DG6Pros

Riebo Master Pro Oblique Camera

  • Brand New Image Coding
  • MLS Shutter
  • Redundant Data Deletion
  • Open SDK
  • No GCPs Required
  • Parallel layout
  • MLE Lens
  • Brightness Correction

Mapping Camera
TechHub

Explore the forefront of Photogrammetry innovation Mapping Camera TechHub, where cutting-edge mapping cameras redefine precision and efficiency in the ever-evolving field of spatial imaging technology.

Learn More
mapping camera techhub

TECHNICAL SPECIFICATIONS

Basic Parameters
  • Total Pixels

    305MP

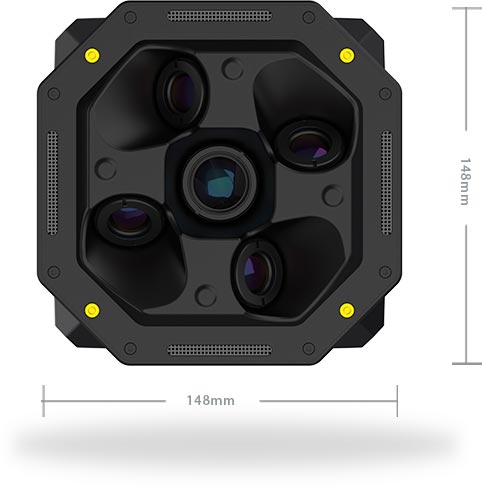

  • Dimension

    148*148*132mm

  • Camera Weight

    1600g

  • Exposure Time Interva

    1s

  • Shutter Speed

    1/100-1/2000s

  • Camera Memory

    1280GB*2

  • Data Transfer Mode

    Fast storage download

  • Synchronization

    80μs

  • Exposure Feedback Accuracy

    50μs

  • Synchrony Monitoring

    Active

  • Parameter Adjustment Method

    Remote control/Serial port/Bluetooth

Adaptive Parameters
  • Supply Voltage

    DC (12V-27V)

  • Power Supply Interface

    Skyport/DC/Custom

  • Mounting Mode

    Downward Hanging/Upward Lifting

  • Shock Absorption

    Damping Ball

  • Operating Temperature

    -20℃-65℃

  • Trigger Mode

    Skyport/Low Level/Serial Port/Bluetooth

Optical Parameters
  • Focal Length

    50mm/75mm

  • Number Of Lens

    5

  • Lens Tilt Angle

    45°

  • Lens Layout

    Parallel layout

  • Lens Structure

    8 elements in 6 groups/8 elements in 7 groups

  • The Minimum Focusing Distance

    25m

  • FOV (Horizontal)

    39.50°/26.92°

  • FOV (Vertical)

    26.88°/18.11°
