DG10P

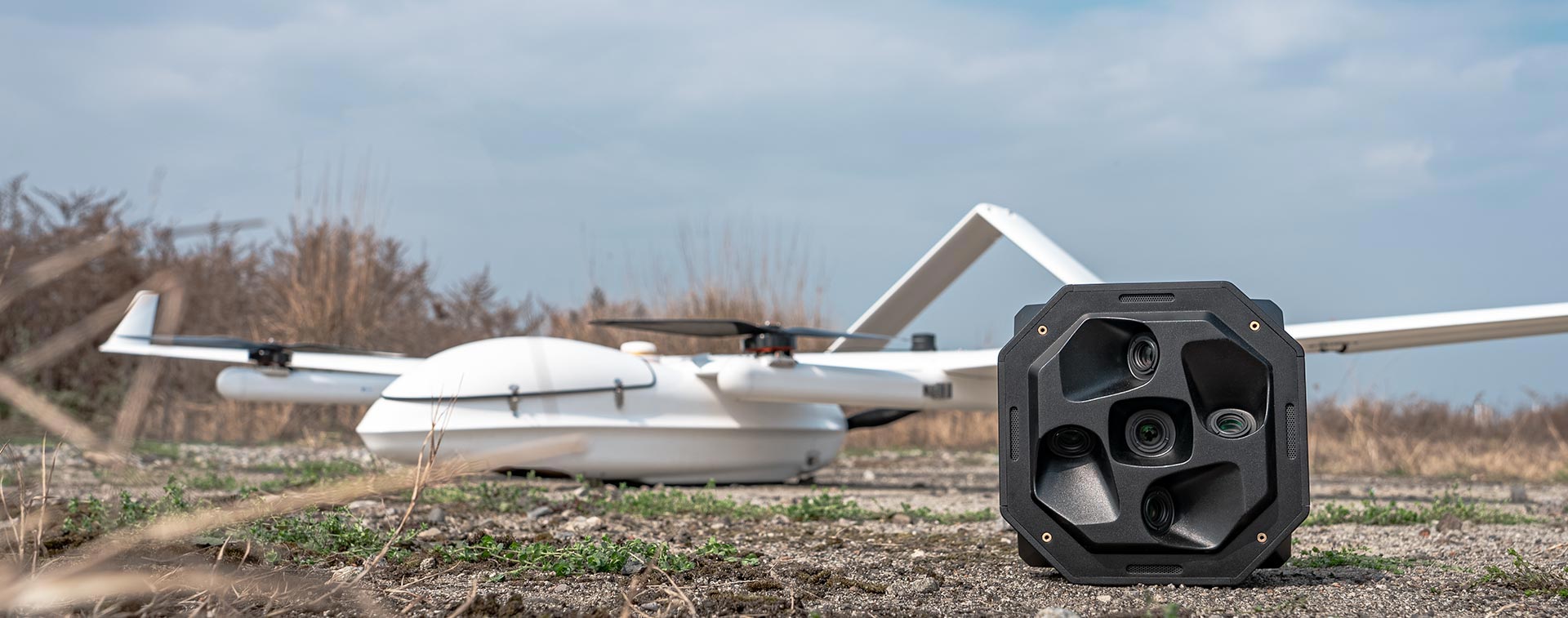

Riebo Epic Oblique Camera

Mapping Camera
TechHub

Explore the forefront of Photogrammetry innovation Mapping Camera TechHub, where cutting-edge mapping cameras redefine precision and efficiency in the ever-evolving field of spatial imaging technology.

Learn More
mapping camera techhub

TECHNICAL SPECIFICATIONS

Basic Parameters
  • Total Pixels

    510MP

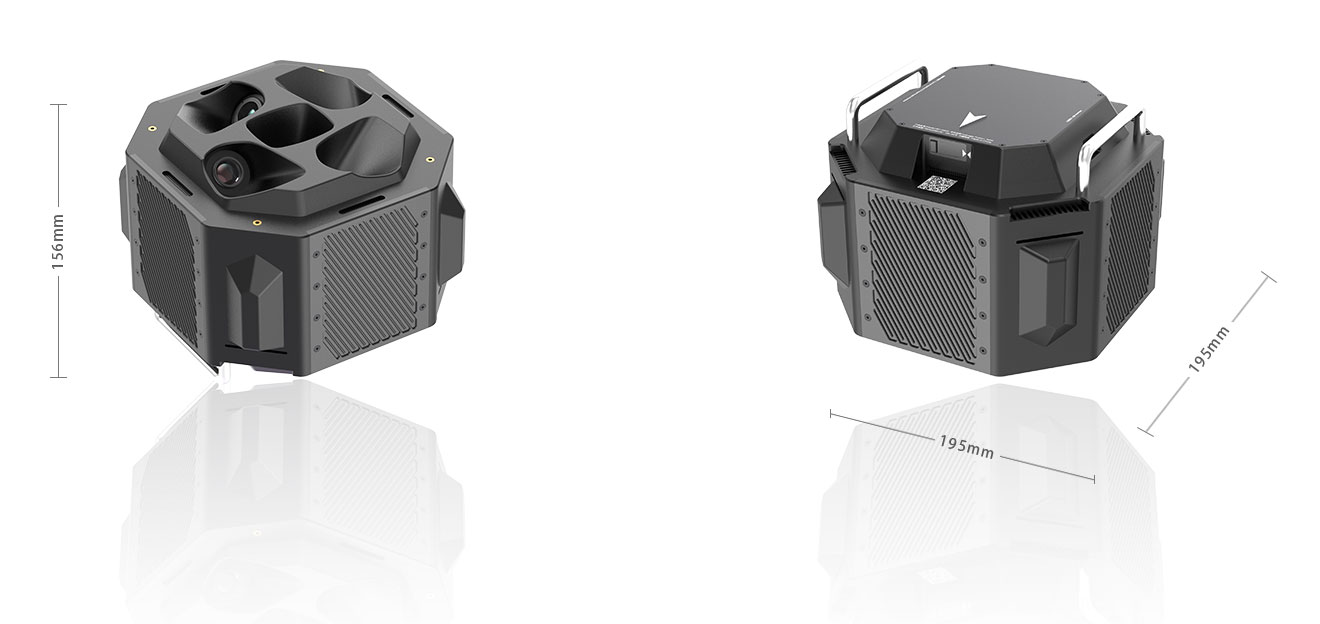

  • Dimension

    195*195*156mm

  • Camera Weight

    ≤3kg

  • Shutter Speed

    1/100-1/2000s

  • Camera Memory

    2560GB*2

  • Data Transfer Mode

    Fast storage download

  • Exposure Feedback Accuracy

    50μs

  • Parameter Adjustment Method

    Base station/Serial port

Adaptive Parameters
  • Supply Voltage

    DC (12V-27V)

  • Power Supply Interface

    Skyport/DC/Custom

  • Mounting Mode

    Downward Hanging/Upward Lifting

  • Shock Absorption

    Damping Ball

  • Operating Temperature

    -20℃-65℃

  • Trigger Mode

    Skyport/Low Level/Serial Port

Optical Parameters
  • Focal Length

    50mm/75mm

  • Number Of Lens

    5

  • Lens Tilt Angle

    45°

  • Lens Layout

    Parallel

  • Lens Structure

    9 elements in 7 groups/10 elements in 7 groups

  • The Minimum Focusing Distance

    25m

  • FOV (Horizontal)

    47.31°/32.56°

  • FOV (Vertical)

    36.42°/24.74°
