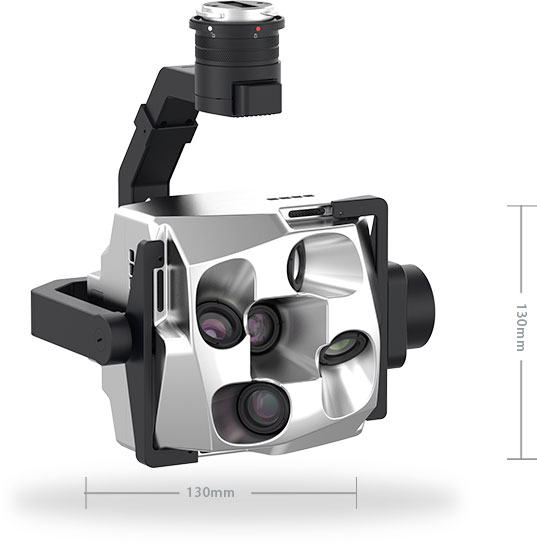

DG5M

Full-frame Oblique Camera

  • Image Coding
  • MLS Shutter
  • Redundant Data Deletion
  • Open SDK
  • No GCPs Required
  • Detachable Gimbal
  • MLE Lens

TECHNICAL SPECIFICATIONS

Basic Parameters

  • Total Pixels

    250MP

  • Dimension

    130*130*100mm

  • Camera Weight

    ≤880g

  • Gimbal Version Weight

    ≤1500g

  • Gimbal Version Size

    180*188*213mm

  • Exposure Time Interva

    0.75s

  • Shutter Speed

    1/100-1/2000s

  • Camera Memory

    1280GB*2

  • Data Transfer Mode

    Fast storage download

  • Synchronization

    80μs

  • Exposure Feedback Accuracy

    50μs

  • Synchrony Monitoring

    Active

  • Parameter Adjustment Method

    Remote control/Serial port

Adaptive Parameters

  • Supply Voltage

    DC (12V-27V)

  • Power Supply Interface

    Skyport/DC/Custom

  • Mounting Mode

    Downward Hanging/Upward Lifting

  • Shock Absorption

    Damping Ball

  • Operating Temperature

    -20℃-65℃

  • Trigger Mode

    Skyport/Low Level/Serial Port

Optical Parameters

  • Focal Length

    40mm/56mm

  • Number Of Lens

    5

  • Lens Tilt Angle

    45°

  • Lens Layout

    Surround

  • Lens Structure

    6 elements in 4 groups

  • The Minimum Focusing Distance

    10m

  • FOV (Horizontal)

    48.46°/35.64°

  • FOV (Vertical)

    33.40°/24.19°
